Transmission Media - Guided Media



1. Guided Media (Wired Transmission)

Guided media, also known as wired or bounded media, refers to transmission channels that use a physical path, such as cables or wires, to transmit data signals from one device to another. Unlike unguided media, where signals travel through air, guided media restrict signal transmission within a defined medium.

Key Features:

1. Provides a high level of signal containment and security.


2. Less susceptible to environmental interference.


3. Offers stable and consistent transmission quality.

The primary types of guided media include Twisted Pair Cable, Coaxial Cable, and Optical Fiber Cable.

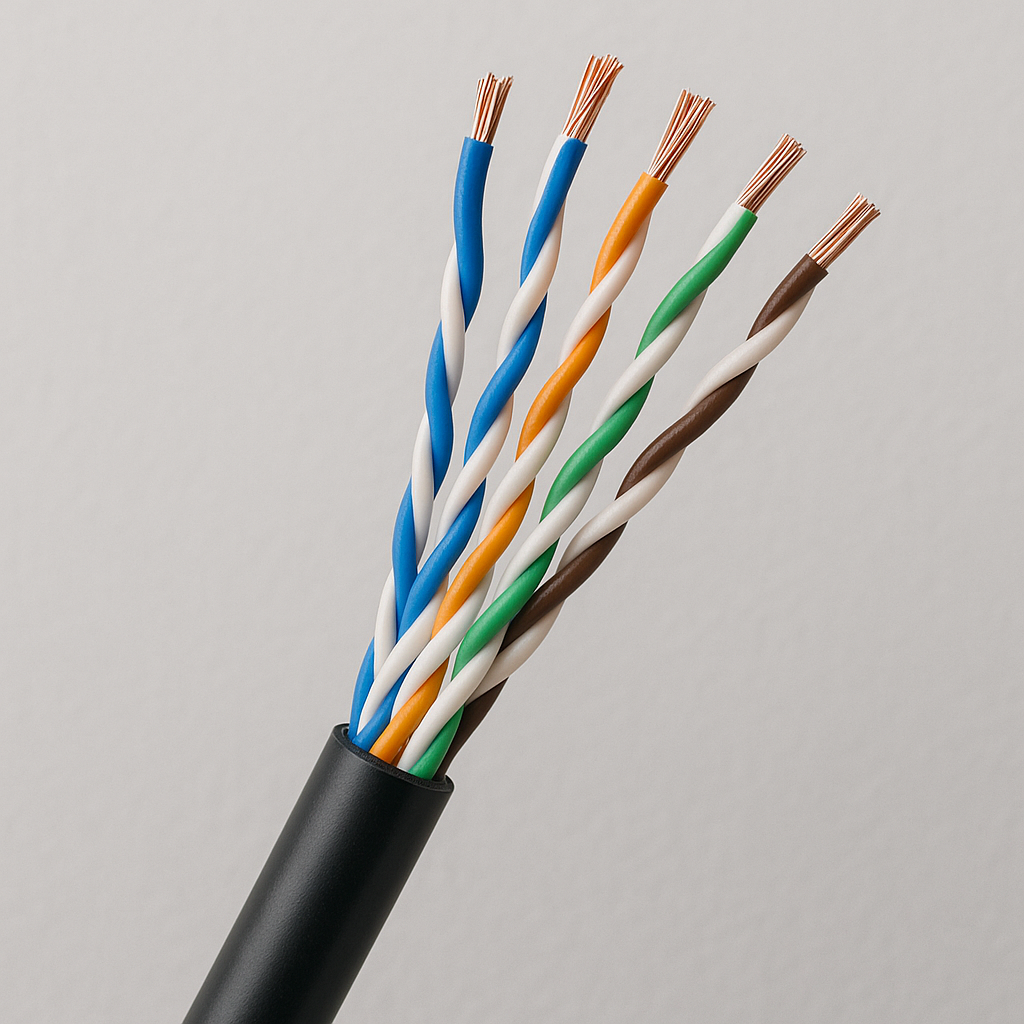

2. Twisted Pair Cable

Twisted pair cables consist of pairs of insulated copper wires twisted around each other. The twisting reduces electromagnetic interference from external sources and crosstalk between adjacent pairs.

Types of Twisted Pair Cables:

2.1 Unshielded Twisted Pair (UTP):

1. Structure: Contains pairs of wires twisted together without any additional shielding.


2. Usage: Commonly used in Ethernet LANs, telephone networks, and DSL lines.


Advantages:

• Inexpensive and easy to install.
• Flexible and lightweight.
• Suitable for short-distance communication.

Disadvantages:

• More susceptible to interference and signal attenuation.
• Less secure compared to shielded alternatives.

2.2 Shielded Twisted Pair (STP):

• Structure: Similar to UTP but includes a foil or braided shielding around the wire pairs to reduce electromagnetic interference.

• Usage: Used in environments with high electromagnetic interference, such as industrial networks or data centers.

Advantages:

• Better protection against noise and interference.
• Improved signal quality over longer distances.

Disadvantages:

• More expensive and difficult to install.

• Less flexible due to additional shielding.

3. Coaxial Cable

Structure:

A coaxial cable consists of a central copper conductor, surrounded by an insulating layer, a metallic shield (usually braided), and an outer protective sheath. This structure provides excellent shielding against signal interference.

Applications:

1. Cable television distribution.


2. Internet (broadband) connections.


3. Closed-circuit television (CCTV) systems.


Advantages:

1. Higher bandwidth and better shielding than twisted pair cables.


2. Reliable for longer distances with less signal loss.


3. Resistant to EMI (electromagnetic interference).


Disadvantages:

1. Bulkier and more expensive than UTP cables.


2. More difficult to install and maintain.


3. Not as scalable as optical fiber.


4. Optical Fiber Cable

Structure:

Optical fiber cables transmit data as light pulses using strands of glass or plastic fibers. Each fiber consists of:

1. Core: The central part where light travels.


2. Cladding: A layer that reflects light back into the core.


3. Protective Coating: Provides mechanical strength and protection from damage.


Types of Optical Fiber:

1. Single-mode Fiber (SMF): Has a small core and transmits a single ray of light. Ideal for long-distance communication.


2. Multi-mode Fiber (MMF): Has a larger core and transmits multiple rays of light. Suitable for shorter distances.


Applications:

1. Internet backbone infrastructure.


2. Long-distance telecommunications.


3. Data centers and high-speed LANs.


4. Medical imaging and industrial sensors.


5. Advantages of Optical Fiber

1. High Bandwidth: Offers significantly higher data transfer rates compared to copper cables.


2. Long Distance Transmission: Supports transmission over much greater distances without signal degradation.


3. Immunity to Electromagnetic Interference: Not affected by radio signals or electrical noise, ensuring stable performance.


4. High Security: Difficult to tap without detection, making it ideal for sensitive data transmission.


5. Lightweight and Small Diameter: Easier to install in space-constrained environments.


6. Durability: Resistant to corrosion and environmental conditions.


6. Disadvantages of Optical Fiber

1. High Initial Cost: Installation and material costs are higher compared to copper cables.


2. Fragility: Fibers are more delicate and can be easily damaged if not handled properly.


3. Complex Installation and Repair: Requires skilled technicians and specialized equipment for splicing and connecting fibers.


4. Power Source Requirement: Needs optical transmitters and receivers, which require electric power.


5. Limited Availability: Not as widely available in rural or underdeveloped regions.



✍Guided media forms the foundation of many communication networks today, offering secure and reliable transmission. Twisted pair cables, especially UTP, are common in everyday networking due to their cost-effectiveness. Coaxial cables provide better shielding and higher bandwidth than twisted pairs. However, optical fiber stands out as the superior technology in terms of speed, bandwidth, and long-distance performance—despite its higher cost and installation complexity. Understanding these media types is essential when designing or upgrading a communication infrastructure.
